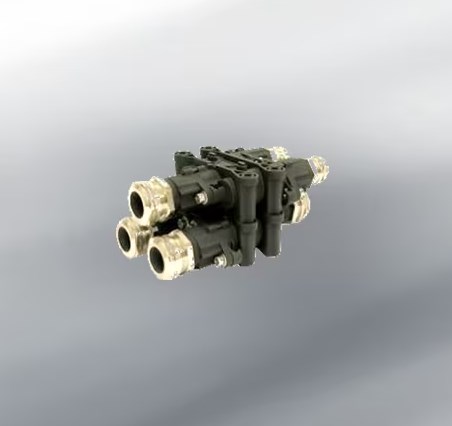

Rail composite power junction WYE Connectors

Benefits

• Modular and stackable
• Compact and weight-saving
• Halogen free

Description

• Single pole power derivation in composite locking system by captive screws
• 1 input / 2 outputs
• Cable cross-section: from 35 to 120 mm2
• 6 keying positions

Main Characteristic

• Rated current: 400 A max. (with cable 120 mm2)
• Service voltage: 3000 V
• Withstand voltage: 9500 V
• Protection index: IP66
• Salt Spray Resistance: 500 hours
• Temperature range: -40oC / +100oC
• Vibrations and shocks: EN 61-373 category 2
