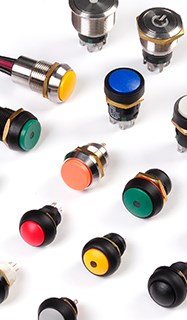

Waterproof Pushbutton A Series

A100 Series

• ​Rating value：2A 250VAC   4A 125VAC
• Mechanical life: ≥200,000 operations one-shot circuit  ,  ≥200,000 operations continuous circuit
• Electrical life：≥100,000 operations
• Contact resistance：≥100MΩ
• Ambient temperature：-25℃~+80℃
• Contact resistance：＜50mΩ
• Withstand Voltage：1000V 50/60Hz For one   minute
• Vibration：10 to 55Hz 1.5mm double amplitude

A200 Series

• Rating value：2A 250VAC   4A 125VAC
• Mechanical life: ≥200,000 operations one-shot circuit ,  ≥200,000 operations continuous circuit
• Electrical life：≥100,000 operations
• Operating force：＜6N
• Contact resistance：≥100MΩ
• Ambient temperature：-25℃~+80℃
• Contact resistance：＜50mΩ
• Withstand Voltage：1000V 50/60Hz For one   minute
• Vibration：10 to 55Hz 1.5mm double amplitude

A300 Series

• Rating value：2A 250VAC   4A 125VAC
• Customizable: 4A 250VAC   6A 125VAC
• Mechanical life: ≥200,000 operations one-shot circuit , ≥200,000 operations continuous circuit
• Electrical life：≥100,000 operations
• Operating force：＜6N
• Insulation resistance：≥100MΩ
• Ambient temperature：-25℃~+80℃
• Contact resistance：＜50mΩ
• Withstand Voltage：1000V 50/60Hz For one   minute
• Vibration：10 to 55Hz 1.5mm double amplitude

A400 Series

• Rating value：2A 250VAC   4A 125VAC
• Customizable: 4A 250VAC   6A 125VAC
• Mechanical life: ≥200,000 operations one-shot circuit, ≥200,000 operations continuous circuit
• Electrical life：≥100,000 operations
• Operating force：＜6N
• Insulation resistance：≥100MΩ
• Ambient temperature：-25℃~+80℃
• Contact resistance：＜50mΩ
• Withstand Voltage：1000V 50/60Hz For one   minute
• Vibration：10 to 55Hz 1.5mm double amplitude

A500 Series

• Rating value：3A 250VAC   5A 125VAC
• Customizable: 5A 250VAC   8A 125VAC
• Mechanical life: ≥200,000 operations one-shot circuit, ≥200,000 operations continuous circuit
• Electrical life：≥100,000 operations
• Operating force：＜6N
• Insulation resistance：≥100MΩ
• Ambient temperature：-25℃~+80℃
• Contact resistance：＜50mΩ
• Withstand Voltage：1000V 50/60Hz For one   minute
• Vibration：10 to 55Hz 1.5mm double amplitude

A600 Series

• Rating value：2A 250VAC   4A 125VAC
• Customizable: 4A 250VAC   6A 125VAC
• Mechanical life: ≥200,000 operations one-shot circuit , ≥200,000 operations continuous circuit
• Electrical life：≥100,000 operations
• Operating force：＜6N
• Insulation resistance：≥100MΩ
• Ambient temperature：-25℃~+80℃
• Contact resistance：＜50mΩ
• Withstand Voltage：1000V 50/60Hz For one   minute
• Vibration：10 to 55Hz 1.5mm double amplitude

A700 Series

• Rating value：3A 250VAC   5A 125VAC
• Customizable: 5A 250VAC   8A 125VAC
• Mechanical life: ≥200,000 operations one-shot circuit, ≥200,000 operations continuous circuit
• Electrical life：≥100,000 operations
• Operating force：＜6N
• Insulation resistance：≥100MΩ
• Ambient temperature：-25℃~+80℃
• Contact resistance：＜50mΩ
• Withstand Voltage：1000V 50/60Hz For one   minute
• Vibration：10 to 55Hz 1.5mm double amplitude

A800 Series

• Rating value：1A 24VDC   1A 220VAC
• Material: 304 stainless steel
• Electrical life：≥50,000 operations
• Base material:Polycarbonate resin
• LED color: red and green, ON is green, OFF is red
• Ambient temperature：-25℃~+85℃
• Insulation resistance：500mΩ (Min)
• Dielectric strength: 1000V RMS (Min)
• operate:Touch
