Ürün Açıklaması

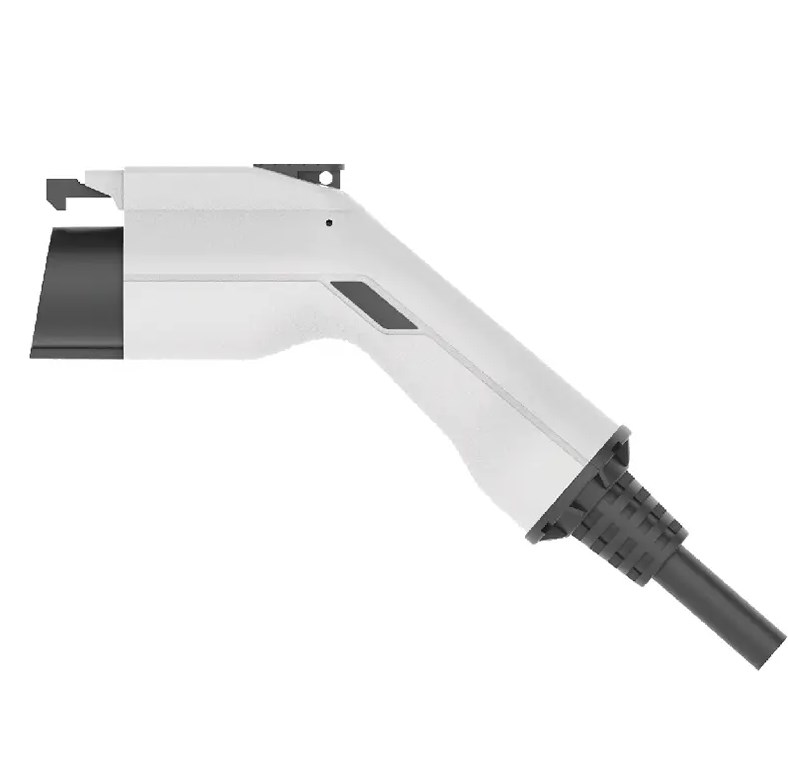

DCNE- US standard AC Charging Vehicle Connector/Plug, 250V,10A-32A
Benefits
⭐ Meet the regulations and requirements of SAEJ1772-2010/ IEC62196-2014;
⭐ The shape extracts the elements of the elephant’s trunk, and the shape is beautiful and generous;
⭐ Anti-slip pattern on the hand-held part, convenient and comfortable to plug and unplug;
⭐ Multi-channel sealing structure design, product protection level can reach IP67;
⭐ Product design reserved temperature monitoring function;
|
Plug Model
|
Rated Voltage
|
Rated Current
|
Application
|
|
DCNEM-A-A110
|
250V
|
10A
|
BEV
Electric Bus
Integrated Charging station |
|
DCNEM-A-A120
|
16A
|
|
DCNEM-A-A130
|
32A
|
| Electronical |
Electronic Looking Function |
250V(1 Phase) |
| Rated Current |
10A/16A/32A |
| Insulation Resistance |
≥500MΩ |
| Withstand Voltage |
2500V |
| Temperature Rise |
≤50K |
| Electronic Looking Function |
YES |
| Temperature Inspect Function |
YES |
| Plugging Force |
≤100N |
| Looking Pull-Out Force |
≥200N |
| Cable Tension |
100N-240N |
| Mechanical Life |
≥20000 Times |
| Emergency Looking Function |
NO |
| Vehicle Rolling |
5000N |
| Environmental |
Ambient Temperature |
-40℃ ~ +75℃ |
| Pollution Level |
2nd Level |
| Protection Level |
IP67 |
| Rubber Age Resistance |
240h |
| Plastic Age Resistance |
168h |
| CTI Level |
0 Level |
