Product Overview

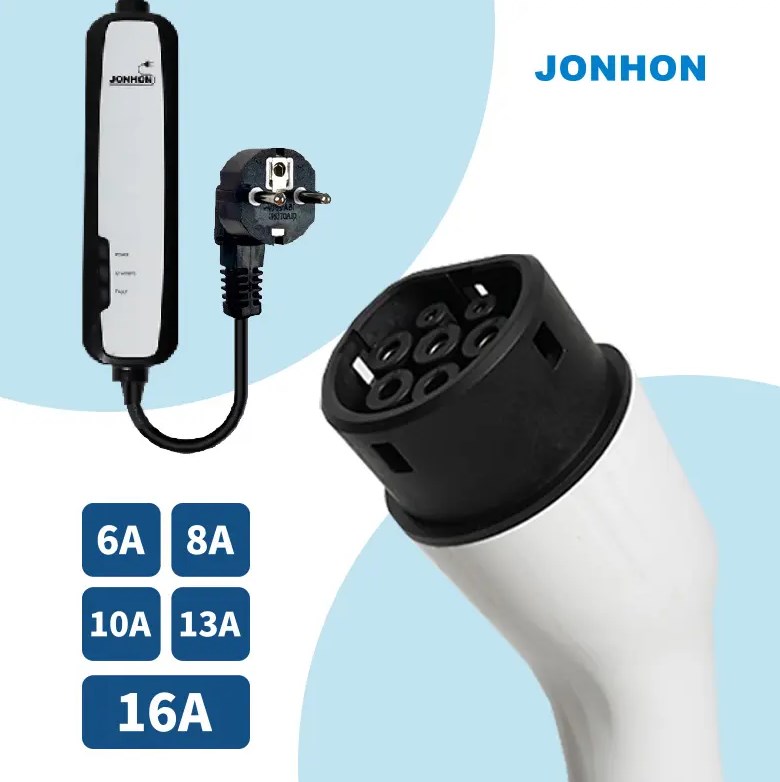

The Type2 AC EV Charger Mode 2 is designed to provide a reliable and efficient charging solution for electric vehicles. This integrated EV charger is portable, making it convenient for use anywhere, and is compatible with 99% of EV models on the market. With customizable logo labels and cable lengths, this charger meets diverse user needs while adhering to European standards for EV AC chargers.
Key Features
Portable Design: The integrated design allows you to take the charger anywhere, providing flexibility and convenience.
Wide Compatibility: Compatible with 99% of electric vehicle models, ensuring broad usability.
Customizable Options: Logo labels and cable lengths can be customized to meet specific requirements.
European Standard Compliance: Adheres to European standards for EV AC chargers, ensuring safety and reliability.
Robust Protection: Equipped with Type B leakage protection and high insulation resistance for enhanced safety.
Durable Construction: Designed to withstand harsh environmental conditions with an IP67 control box and IP54 vehicle connector.
Specifications
|
Working Voltage
|
230V
|
|
Working Frequency
|
50/60Hz
|
|
Rated Output Current
|
6/8/10/13/16A/32A
|
|
Leakage Protection
|
Type B, 30mA(AC),6mA(DC)
|
|
Insulation Resistance
|
room temperature ≥50MΩ
|
|
Withstand Voltage
|
2500V AC(input/output to ground)
|
|
Working Temp
|
-40°~60°
|
|
IP Grade
|
control box IP67, vehicle connector IP54
|
|
Altitude
|
≤3000m
|
|
Cable Length
|
3m/5m/10m/15m/20m
|
Applications
The Type2 AC EV Charger Mode 2 is versatile and can be used in various scenarios, including:
Residential Charging: Ideal for home use, providing a convenient and reliable charging solution.
Public Charging Stations: Suitable for installation in public charging stations, offering compatibility with a wide range of EV models.
Workplace Charging: Perfect for workplace environments, allowing employees to charge their vehicles while at work.
Travel and On-the-Go Charging: The portable design makes it easy to carry and use while traveling, ensuring your EV is always charged.
