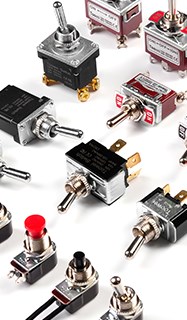

Toggle Switch T Series

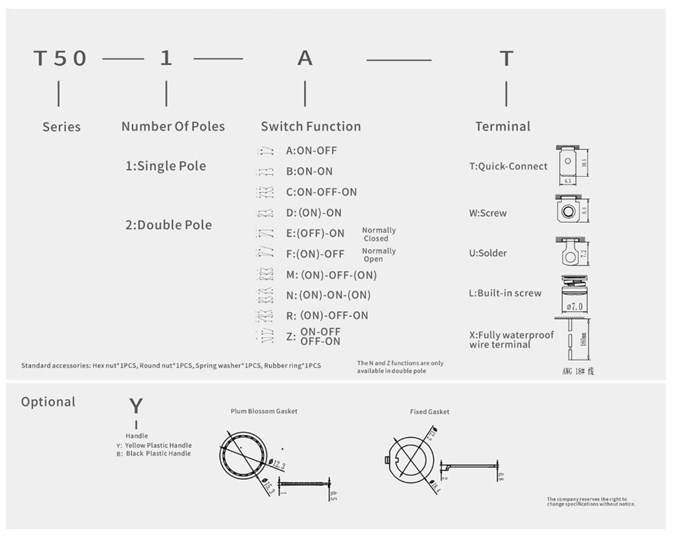

T500 Waterproof Toggle Switch

• Rating value: 15A 250VAC   20A 125VAC
• Customizable: 20A 250VAC   25A 125VAC
• Mechanical life: 50,000 Cycle Min
• Electrical life: 20,000 Cycle Min
• Operating force: ＜12N
• Insulation resistance: ≥100MΩ
• Contact resistance：≤50mΩ
• Ambient temperature: -25℃~+80℃
• Customizable: -40℃~+80℃
• Humidity: 85%Rh Below
• Dielectric strength: 500V RMS(Min)
• Mechanical strenght: lmpact energy equals(0.5± 0.04)N.m

T500 Waterproof Lock Lever Toggle Switch

Rating value: 15A 250VAC   20A 125VAC

Customizable: 20A 250VAC   25A 125VAC

Mechanical life: 50,000 Cycle Min

Electrical life: 20,000 Cycle Min

Operating force: ＜12N

Insulation resistance: ≥100MΩ

Contact resistance：≤50mΩ

Ambient temperature: -25℃~+80℃

Customizable: -40℃~+80℃

Humidity: 85%Rh Below

Dielectric strength: 500V RMS(Min)

Mechanical strenght: lmpact energy equals  (0.5± 0.04)N.m

T600 Toggle Switch

• Rating value: 10A 250VAC   15A 125VAC
• Customizable: 20A 250VAC   25A 125VAC
• Mechanical life: 50,000 Cycle Min
• Electrical life: 20,000 Cycle Min
• Operating force: ＜12N
• Insulation resistance: ≥100MΩ
• Contact resistance：≤50mΩ
• Ambient temperature: -25℃~+80℃
• Humidity: 85%Rh Below
• Dielectric strength: 500V RMS(Min)
• Mechanical strenght: lmpact energy equals (0.5± 0.04)N.m

T600 Lock Lever Toggle Switch

• Rating value: 10A 250VAC   15A 125VAC
• Customizable: 20A 250VAC   25A 125VAC
• Mechanical life: 50,000 Cycle Min
• Electrical life: 20,000 Cycle Min
• Operating force: ＜12N
• Insulation resistance: ≥100MΩ
• Contact resistance：≤50mΩ
• Ambient temperature: -25℃~+80℃
• Humidity: 85%Rh Below
• Dielectric strength: 500V RMS(Min)
• Mechanical strenght: lmpact energy equals (0.5± 0.04)N.m

T700 Toggle Switch

• Rating value: 10A 250VAC   15A 125VAC
• Customizable: 20A 250VAC   25A 125VAC
• Mechanical life: 50,000 Cycle Min
• Electrical life: 20,000 Cycle Min
• Operating force: ＜24N
• Insulation resistance: ≥100MΩ
• Contact resistance：≤50mΩ
• Ambient temperature: -25℃~+80℃
• Humidity: 85%Rh Below
• Dielectric strength: 500V RMS(Min)
• Mechanical strenght: lmpact energy equals (0.5± 0.04)N.m

T800 Sealed Toggle Switch

• Rating value: 15A 250VAC   20A 125VAC
• Customizable: 20A 250VAC   25A 125VAC
• Mechanical life: 50,000 Cycle Min
• Electrical life: 20,000 Cycle Min
• Operating force: ＜12N
• Insulation resistance: ≥100MΩ
• Contact resistance：≤50mΩ
• Ambient temperature: -25℃~+80℃
• Customizable: -40℃~+80℃
• Humidity: 85%Rh Below
• Dielectric strength: 500V RMS(Min)
• Mechanical strenght: lmpact energy equals (0.5± 0.04)N.m

Waterproof Boot and Safety Cover
