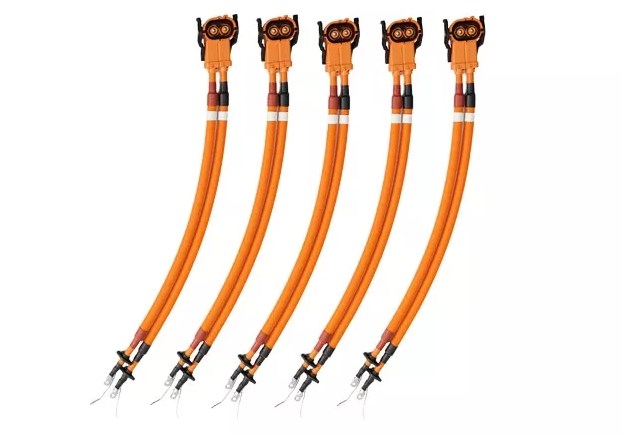

SH2 Series 250A HV Interlock Plastic Connectors
SH2 series products are high-voltage interlocking high-current plastic connectors, with a maximum current of 250A, which are suitable for electrical connection between motor controllers, PDUs, all-in-one, batteries and other on-board equipment.
Main Advantage
- High pressure interlock, secondary locking
- Multi-key error proofing, shielding, waterproof
- Delay separation (segment unlock), socket terminal TPA
Introduction of SH2 HV Interlocking Plastic Connector
SH2 series products are high-voltage interlocking high-current plastic connectors, which are suitable for electrical connection between motor controllers, PDUs, all-in-one, batteries and other on-board equipment.
Features of SH2 HV Interlocking Plastic Connector
The product adopts plastic shell, in addition to high-voltage interlock, secondary locking, multi-key position error prevention, shielding, waterproof and other functions, it also has functions such as time-delay separation (segment unlocking), socket terminal TPA and other functions.
Parameters of SH2 Series 250A HV Interlock Plastic Connectors
| Description |
Item No. |
SH2-2TPH-70A |
| Electrical Performance |
Rated voltage |
1000V |
| Withstand voltage |
4000V |
| Rated current |
150A/200A/250A |
| Insulation resistance |
5000MΩ |
| Mechanical Properties |
Pins |
2 pins |
| Mating cycles |
>100Times |
| Cross sections |
35mm² / 50mm² / 70mm² |
| Vibration class acc. To |
QC/T 1067.1-2017 V2 |
| Raw Material |
Shell |
PA66 |
| Shielding |
Copper alloy |
| Insulator |
PA66 |
| Sealing |
Rubber material |
| Environmental Performance |
Operating temperature |
-40℃~140℃ |
| Protection Grade |
IP68 IP69K |
| Salt Spray |
504h |
