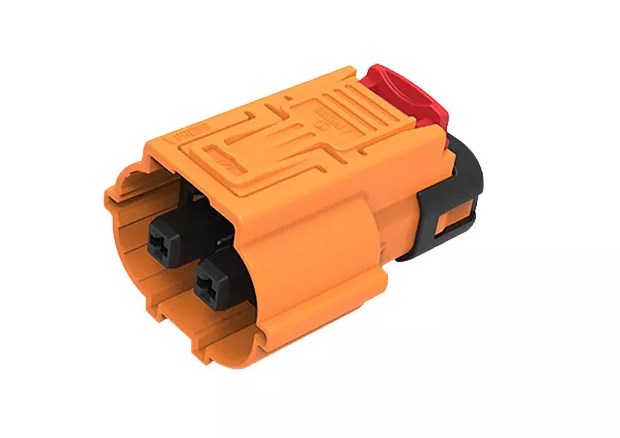

SH1 Series 20A/30A/40A HV Interlock Plastic Connector
SH1 series products are high-voltage interlocking low-current plastic connectors, 20A/30A/40A optional, which are suitable for electrical connection between motor controllers, PDUs, all-in-one machines, PTCs and other on-board equipment. There are 2-hole and 3-hole options.
Main Advantage
- High pressure interlock, secondary locking
- Multi-key error proofing, shielding, waterproof
- Delay separation (segment unlock), socket terminal TPA
Introduction of SH1 HV Interlocking Plastic Connector
SH1 series products are high-voltage interlocking low-current plastic connectors, suitable for electrical connection between motor controllers, PDUs, all-in-one, PTC and other on-board equipment.
Features of SH1 HV Interlocking Plastic Connector
-
High pressure interlock, secondary locking function
-
Secondary separation: segment unlocking (delayed separation);
-
CPA TPA: Both connectors and terminals have a secondary locking structure;
-
The rated voltage of the product is increased to 1000V, and the withstand voltage is 4000V AC;
-
The product is resistant to neutral salt spray up to 504h (GB 2423.17);
Size of SH1 HV Interlocking Plastic Connector
Parameters of SH1 Series 20A/30A/40A HV Interlock Plastic Connector
| Electrical Performance |
Rated voltage |
1000V |
| Withstand voltage |
4000V |
| Rated current |
20A / 30A / 40A |
| Insulation resistance |
5000MΩ |
| Mechanical Properties |
Pins |
2 pinS、3 pinS |
| Mating cycles |
100Times |
| Cross sections |
2.5mm² / 4mm² / 6mm² |
| Vibration class acc. To |
USCAR V2 |
| Raw Material |
Shell |
Nylon |
| Shielding |
Copper alloy |
| Insulator |
Nylon |
| Sealing |
Rubber material |
| Environmental Performance |
Operating temperature |
-40℃~140℃ |
| Protection Grade |
IP68、IP69K |
| Salt Spray |
96h |
