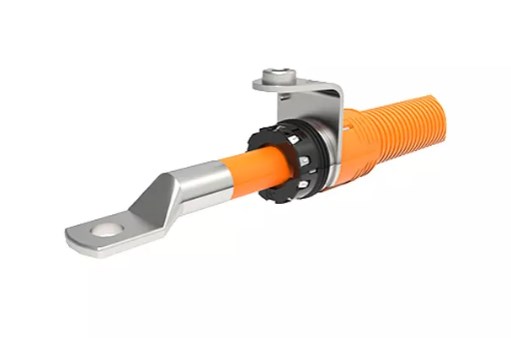

SG1M Series 300A Single Hole Metal Connector
The Saichuan SG1M SG2M SG3M metal connector system can achieve 300A at up to 1000V. With their high mechanical strength ,excellent vibration and shielding , hig
Main Advantage
- Product is RoHS compliant
Introduction of SG1M Metal Via Connector
The Saichuan SG1M SG2M SG3M metal connector system can achieve 300A at up to 1000V. With their high mechanical strength ,excellent vibration and shielding , high efficiency when crimping , the SG1M SG2M SG3M connectors are well-suited to typical high volatge EV applications such as the connection between motor, inverter,PDU and battery. The range includes 1-, 2-, 3-pole connectors which for maximum flexibility can be used copper or aluminum cables in SEVEN different cable cross sections.
Parameters of SG1M Series 300A Single Hole Metal Connector
| Description |
Item No. |
SG1M-11U-70YPA |
| Electrical Performance |
Rated voltage |
1000V |
| Withstand voltage |
4000V |
| Rated current |
MAX 300A |
| Insulation resistance |
5000MΩ |
| Mechanical Properties |
Pins |
one pin |
| Mating cycles |
>100Times |
| Cross sections |
2x6mm² 2x8mm² 2x10mm² 25mm² 35mm² 50mm² 70mm² |
| Vibration class acc. To |
QC/T 1067.1-2017 V3 |
| Raw Material |
Shell |
Aluminum alloy |
| Shielding |
Copper alloy |
| Insulator |
PA66 |
| Sealing |
Rubber material |
| Environmental Performance |
Operating temperature |
-40℃~140℃ |
| Protection Grade |
IP68 IP69K |
| Salt Spray |
96h |
