Ürün Açıklaması
Rocker Switch F Series
F300 Rocker Switch
- Rated value：3A 125/250VAC
- Operating force：5N-20N
- Solderability 245°±5°\1-2s
- soldering resistance245°±5°\3-5s
- Mechanical life：＞400,000次
- Humidity：85% Rh以下
- Electrical：＞100,000
- Insulation resistance：≥100mΩ
- Ambient temperature：25℃~125℃
- Dielectric strength：极与极1000VAC, 极与外壳1500VAC
- Contact resistance：≤50mΩ
F400 Rocker Switch
- Rated value：3A 125/250VAC
- Electrical：＞100,000
- Operating force：5N-20N
- Solderability 245°±5°\1-2s
- soldering resistance245°±5°\3-5s
- Ambient temperature：25℃~125℃
- Insulation resistance：≥100mΩ
- Humidity：85% Rh以下
- Dielectric strength：极与极1000VAC, 极与外壳1500VAC
- Contact resistance：≤50mΩ
F500 Rocker Switch
- Electrical：＞100,000
- Mechanical life：＞1,000,000
- Operating force：5N-20N
- Solderability 245°±5°\1-2s
- soldering resistance245°±5°\3-5s
- Ambient temperature：25℃~125℃
- Insulation resistance：≥100mΩ
- Humidity：85% Rh以下
- Dielectric strength：极与极1000VAC, 极与外壳1500VAC
- Contact resistance：≤50mΩ

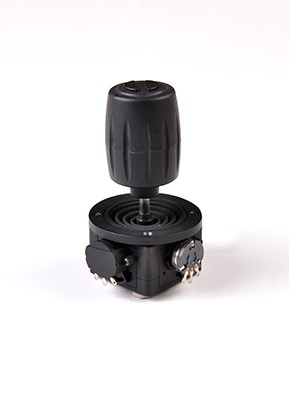

F600 Rocker Switch
- Resistance temperature coefficient：±400ppm/℃
- Reset error rate：0.06KΩ
- Withstand voltage：AC 500V (50Hz)/min
- Resistance tolerance：±20%
- Power: 2W Resistance value: 10K
- Independent linear tolerance：±1%
- Rated value: voltageMax 24V
- Output smoothing: Maximum0.5%
- Use environment：-25℃~75℃
- X and Y axis electrical rotation angle：25°
- Corresponding humidity：85% Rh
- Z axis electric angle：5°
- Contact resistance：≤50mΩ
- Service life：10000次
- Insulation resistance：≥100mΩ
F700 Rocker Switch
- Resistance temperature coefficient：±400ppm/℃
- Reset error rate：0.06KΩ
- Withstand voltage：AC 500V (50Hz)/min
- Resistance tolerance：±20%
- Power: 2W Resistance value: 10K
- Independent linear tolerance：±1%
- Rated value: voltageMax 24V
- Output smoothing: Maximum0.5%
- Use environment：-25℃~75℃
- X and Y axis electrical rotation angle：25°
- Corresponding humidity：85% Rh
- Z axis electric angle：5°
- Contact resistance：≤50mΩ
- Service life：10000次
- Insulation resistance：≥100mΩ
Detaylı bilgi ve toplu siparişleriniz için info@adozmuhendislik.com adresine mail iletebilirsiniz.
