⭐ Board input voltage 90-265V, with CAN BUS communication
⭐ IP66 standard
⭐ Multiple smart functions to beyond your expectation
⭐ Could be applied for forklift, pallet truck, crane, electric boat/vehicles battery
⭐ One charger to one battery charge, protecting your battery lifespan effectively

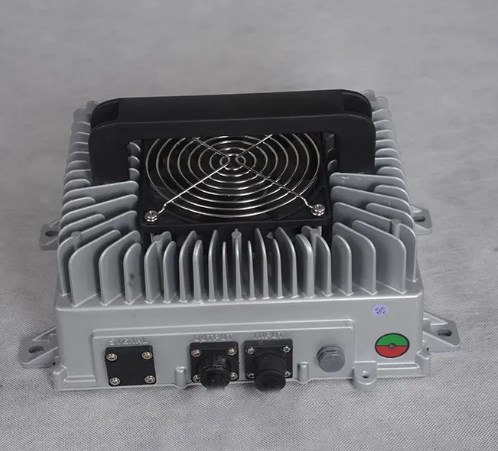

Name	OBC Q2-3.3KW DC48-440V 10-42A broad voltage with CAN, stackable smart charger
Model	DCNE-Q2-3.3kw
Cooling Way	Air cooling
Size	295*210*111mm
N.W	6.5KG
Color	Silver
Battery Type	Lifepo4,18650, Lithium ion battery lead-acid battery, AGM, GEL Nickel-metal hydride, nickel-cadmium, nickel-chromium batteries, etc
Efficiency	≥93%
IP	IP66 （Waterproof, dustproof, explosion-proof, shockproof）
Input Voltage	AC110-220V、50-60Hz
Input Current	16A
Output Voltage	48V、72V、84V、96V、144V、312V、440VDC
Output Current	45A、40A、32A、23A、10A
Protection function:	1.Superheat protection, short circuit protection, reverse connection protection.
	2.Overpressure protection Overcharge protection.
	3. LED lights
Charge mode:	constant current charge, constant pressure charge, uniform charge, floating charge.
Input Connectors	EU/US/UK/AU plug;EU/US charging gun and socket (optional)
Charging time	Calculate charging time based on battery capacity
Operating temperature	(-35 ~ +60)℃;
Storage temperature	(-55 ~ +100)℃;
Material	Aluminum drawing piece
Output type	Constant pressure/current
Output power	3300W
Input cable length	1.2M
Output cable length	1M
CAN communication function	Yes
Please check the charger operation and installation manual
