Ürün Açıklaması

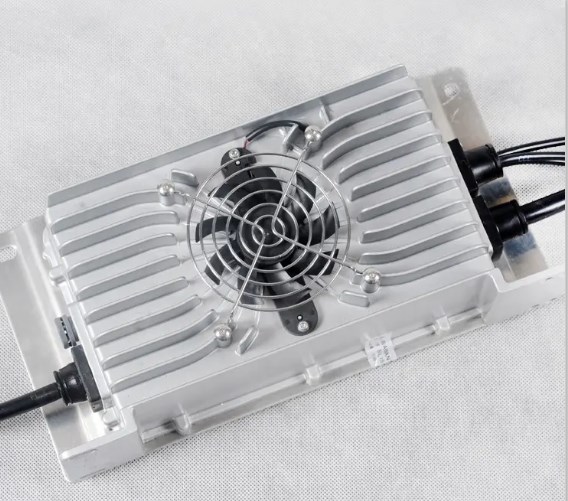

OBC Q2-1.5KW DC12-84V 15-25A Smart IP66 charger for lead acid or lithium battery
Benefits
⭐ Board input voltage 90-265V, with CAN BUS communication
⭐ IP66 standard
⭐ Multiple smart functions to beyond your expectation
⭐ Could be applied for motorcycle, golf/club/sightseeing/cleaning cart battery
⭐ One charger to one battery charge, protecting your battery lifespan effectively
|
Name
|
OBC Q2-1.5KW DC12-84V 15-25A Smart IP66 charger for lead acid or lithium battery
|
|
Model
|
DCNE-Q2-1.5kw
|
|
Cooling Way
|
Air cooling
|
|
Size
|
280*145*80mm
|
|
N.W
|
3.5KG
|
|
Color
|
Silver
|
|
Battery Type
|
Lifepo4,18650, Lithium ion batterylead-acid battery, AGM, GEL
Nickel-metal hydride, nickel-cadmium, nickel-chromium batteries, etc
|
|
Efficiency
|
≥93%
|
|
IP
|
IP66 （Waterproof, dustproof, explosion-proof, shockproof）
|
|
Input Voltage
|
AC110-220V、50-60Hz
|
|
Input Current
|
13A
|
|
Output Voltage
|
12V、24V、36V、48V、60V、72VDC
|
|
Output Current
|
30A、25A、20A、15A
|
|
Protection function:
|
1.Superheat protection, short circuit protection, reverse connection protection.
|
|
2.Overpressure protection Overcharge protection.
|
|
3. LED lights
|
|
Charge mode:
|
constant current charge, constant pressure charge, uniform charge, floating charge.
|
|
Input Connectors
|
EU/US/UK/AU plug;EU/US charging gun and socket (optional)
|
|
Charging time
|
Calculate charging time based on battery capacity
|
|
Operating temperature
|
(-35 ~ +60)℃;
|
|
Storage temperature
|
(-55 ~ +100)℃;
|
|
Material
|
Aluminum drawing piece
|
|
Output type
|
Constant pressure/current
|
|
Output power
|
1500W
|
|
Input cable length
|
1.2M
|
|
Output cable length
|
1M
|
|
CAN communication function
|
Yes
|
|
Please check the charger operation and installation manual
|
