Ürün Açıklaması

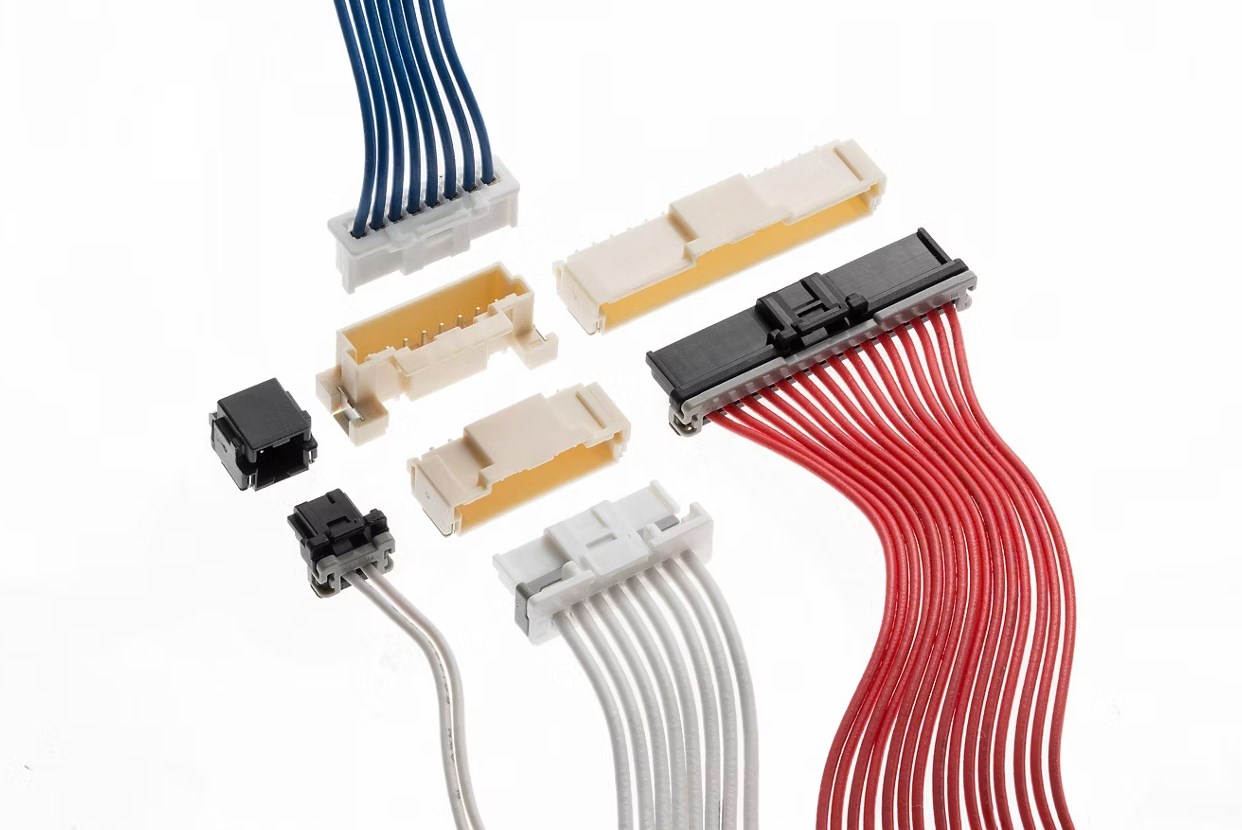

MOLEX Wire-to-Board Connectors
OneBlade Connectors
The modular OneBlade 1.00mm-Pitch Wire-to-Board Connector System with friction lock and spacious pick-and-place area combines design simplicity with speed and ease of assembly.
| Pitch |
Current |
Wire Gauge |
Voltage |
Termination Style |
| 1.00mm |
Up to 2.5A |
32 to 28 AWG |
Up to 100V |
SMT |
PicoBlade Connectors
High-performance PicoBlade Wire-to-Board and Wire-to-Wire Connectors feature both tin and gold-plated versions for superior flexibility, reliability and durability across a wide variety of applications and industries.
| Pitch |
Current |
Wire Gauge |
Voltage |
Termination Style |
| 1.25mm |
Up to 3.0A |
32 to 26 AWG |
Up to 250V |
SMT, Through Hole |
Pico-SPOX Connectors
The compact design of Pico-SPOX, with its 1.50mm pitch, saves 30% more space compared to larger 2.00mm connectors. Pico-SPOX offers a range of circuit options and orientations, providing the flexibility needed to integrate connectors into a wide array of applications and designs.
| Pitch |
Current |
Wire Gauge |
Voltage |
Termination Style |
| 1.50mm |
3.5A (2-circuits/24 AWG) |
30 to 24 AWG |
250V AC RMS/DC |
SMT |
Micro-Latch Connectors
Molex's Micro-Latch Connector System provides a reliable connection interface for industry- standard 2.00mm wire-to-board applications.
| Pitch |
Current |
Wire Gauge |
Voltage |
Termination Style |
| 2.00mm |
Up to 2.5A |
30 to 22 AWG |
Up to 250V |
Through Hole |
Milli-Grid Connectors
A space saving, high-density connector system based on a 2.00-by-2.00mm grid pattern that offers complete design flexibility.
| Pitch |
Current |
Wire Gauge |
Voltage |
Termination Style |
| 2.00mm |
Up to 2.5A |
30 to 22 AWG |
Up to 125V |
SMT, Through Hole |
Mini-SPOX Connectors
Provides a fine-pitch connector system that features lower profile heights and various circuit sizes in vertical and right-angle configurations, with an additional polarization feature which helps to avoid mismating.
| Pitch |
Current |
Wire Gauge |
Voltage |
Termination Style |
| 2.50mm |
Up to 3.0A |
28 to 22 AWG |
Up to 250V |
Through Hole |
C-Grid Connectors
The C-Grid family of connectors offers benefits for a wide range of electronic products across industries. The latest version from Molex, C-Grid III, offers high mechanical stability in a compact 2.54mm pitch post and receptacle. Find the flexible C-Grid and C-Grid III components that fit your project.
| Pitch |
Current |
Wire Gauge |
Voltage |
Termination Style |
| 2.54mm |
Up to 3.0A |
28 to 22 AWG |
Up to 250V |
SMT, Through Hole |
KK Connectors
KK Connector Systems are customizable for a variety of power and signal applications. Available in industry-standard 2.54, 3.96 and 5.08mm pitch sizes, this single-row, wire-to-board and board-to-board product family is cost effective and versatile.
| Pitch |
Current |
Wire Gauge |
Voltage |
Termination Style |
| 2.54, 3.96, 5.08mm |
13.0A |
30 to 18 AWG |
Up to 600V |
Through Hole |
Standard .062" and 0.93" Pin and Socket Connectors
Pin and Socket Connectors offer dependable and adaptable connectivity for various industries. See how these cost-effective, versatile solutions can deliver consistent electrical performance and secure connections to your project.
| Pitch |
Current |
Wire Gauge |
Voltage |
Termination Style |
| 3.68 to 6.70mm |
Up to 17.0A |
30 to 14 AWG |
Up to 250V |
Through Hole |
