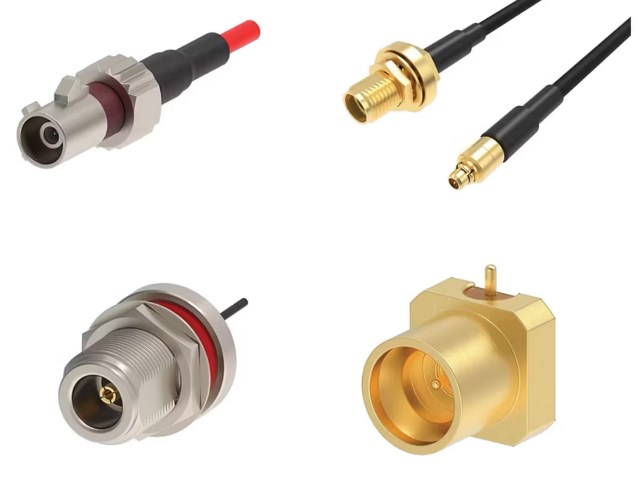

Molex RF Connectors

Ultra Microminiature

Among the smallest available 6 GHz RF connectors, MCRF and SSMCX ultra microminiature RF coaxial connectors deliver high-frequency performance up to 6 GHz, making them ideal for compact and space-constrained applications. These connectors provide reliable connectivity and high-precision performance for compact devices.

MCRF 6 GHz
SSMCX 6 GHz



Microminiature

Microminiature RF connectors provide compact and ultrahigh-frequency solutions for devices subject to moderate size constraints. Precision-engineered MMCX, MCX, SMP and SMPM connectors support frequencies up to 65 GHz, depending on the connector type, while rugged SMP-MAX connectors provide durable performance up to 6 GHz for harsh-duty applications.



MMCX 6 GHz
MCX 6 GHz
SMPM 65 GHz
SMP 40 GHz
SMP-MAX 6 GHz

Subminiature

Engineered for small form factors and high-frequency, high-precision performance up to 26.5 GHz, subminiature RF connectors deliver reliable and compact solutions for a wide range of applications. The versatile subminiature portfolio includes automotive-grade FAKRA, rugged DIN 1.0/2.3 and versatile SMA connectors.

DIN 1.0/2.3 10 GHz
SMA 26.5 GHz
SMB 4 GHz
BMA 4 GHz
FAKRA 4 GHz
Type F 4 GHz

Precision

Precision microminiature RF connectors deliver ultra-high-frequency performance from 40 to 110 GHz, supporting stable and accurate signal transmission in demanding applications. The portfolio includes high-accuracy 1.0, 1.85, 2.4 and 2.92mm connectors along with precision SMA connectors.



1.0mm 110 GHz
1.85mm 67 GHz
2.4mm 50 GHz
2.92mm 40 GHz
Optimized SMA



Miniature

Designed for diverse applications, standard miniature RF connectors such as 2.2-5, BNC and TNC types deliver robust signal integrity and reliable performance for frequencies from 4 to 11 GHz.

BNC 4 GHz
TNC 11 GHz
2.2-5 6 GHz



Medium

Combining compact size, high performance and exceptional durability, medium-sized RF solutions such as 4.3-10 and Type N connectors provide reliable operation at frequencies up to 12 GHz, making them ideal for demanding or harsh-duty applications.



Type N 11 GHz
4.3-10 12 GHz
