D-Sub Connectors

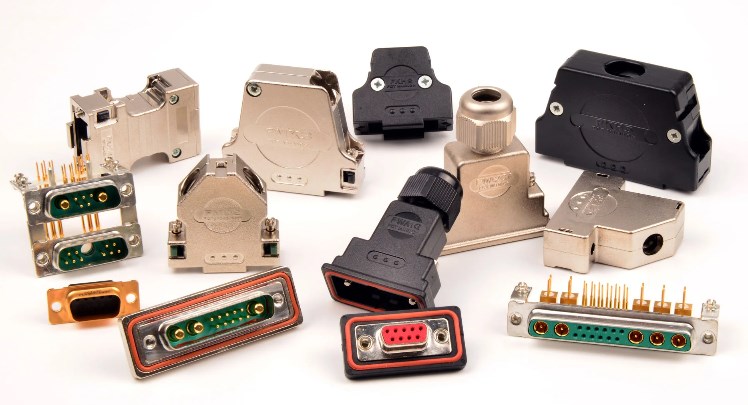

FCT D-Sub Product Family includes connectors available in standard, high-density and mixed-layout versions, as well as various material and plating combinations with an extensive range of backshells and accessory options, to provide effective solutions for a variety of applications.
Standard D-Sub Connectors
Standard D-Sub Connectors feature machined pin and socket contacts available in circuit sizes of 9, 15, 25, 37 and 50. These contacts can be configured for solder pot, crimp, straight or right-angled PCB termination, offering versatile solutions for various applications.
| Circuits |
Current |
Durability |
| 0 to 50 |
1.5, 5.0, 7.5A |
50, 200, 500 cycles |
High-Density D-Sub Connectors
High-Density D-Sub Connectors provide a high-current rating (up to 5.0A per pin) due to their precision-machined contacts, and the high-density configuration allows for increased pin count compared to standard D-sub connectors.
| Circuits |
Current |
Durability |
| 15 to 78 |
3.0, 5.0A |
50, 500 cycles |
Ensure optimal functionality across various applications with D-Sub High-Density with Advanced Filtering Type C, along with our EMI-Filtered High-Performance D-Sub Pi Adapters and Connectors. These components feature integrated multiline filtering and a compact design, offering customizable solutions to meet your specific application requirements.
| Type |
Shell Sizes |
Options |
Current Rating |
| Pi |
9, 15, 25, 37 and 50 pins |
Threaded Locking Inserts (LI), Grounding bracket (GB) right-angle mount PCB connectors |
5.0A |
| High Density |
15, 26 and 44 pins |
3.0A; RF current: 0.3A |
Mixed Layout D-Sub Connectors
Mixed-Layout D-Sub Connectors and Cable Assemblies offer a range of standard housings, a portfolio of high-current, high-voltage, pneumatic and coaxial contacts and various accessory options to meet each application’s specific connectivity requirements.
| Circuits |
Current |
Durability |
| 1 to 47 |
2.0 to 40.0A |
200, 500 cycles |
Waterproof D-Sub Connectors
Robust Waterproof D-Sub Connector solutions provide protection in harsh environments from external particles including dust, foreign objects and moisture up to IP67 rating levels.
| Circuits |
Current |
Durability |
IP Rating |
| 0 to 78 |
1.5, 3.0, 5.0, 7.5A |
50, 200, 500 cycles |
IP20, IP67
|
Non-Magnetic D-Sub Connectors
Non-Magnetic D-Sub Connectors are 100% tested to meet industry standard permeability at µr ≤1.0025 to provide effective solutions for advanced imaging equipment in medical, industrial and scientific applications.
| Circuits |
Current |
Durability |
| 3 to 50 |
Up to 7.5A |
500 cycles |
Micro-D Connectors
Micro-D Connectors provide four times the density of standard D-sub connectors. Rugged housings, reliable field performance and automatic polarization features make Micro-D Connectors an ideal solution for providing notable space savings in PCBs and packaging.
| Circuits |
Pitch |
| 9 to 50 |
0.64, 1.27mm |
