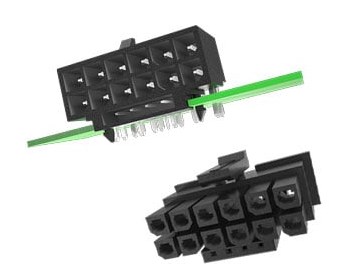

Minitek® Pwr CEM-5 PCIe® Connector System
Amphenol introduces the Gen 5, Minitek® 12VHPWR connector system. This new introduction CEM 5.0 PCI Express® 12V-2x6 auxiliary power connector and cable assembly support the 600W GPU cards. The 12V-2x6 auxiliary power connector is not designed to mate with legacy PCI Express® 2x3 and 2x4 12V Auxiliary Power connectors. The 12VHPWR connector power pins have a 3.00mm pitch, while the contacts in a legacy 2x3 and 2x4 connector lie on a larger 4.20mm pitch. New PCIe® Connector System (CEM5) is designed for power applications with current rating up to 9.5A/pin (12 pins energized) and the 4 signal pins supporting signal transmission.
- Rated current up to 9.5A per contact with all 12 power contacts
- Fully isolated terminals
- Positive locking on housing with low thumb latch operation
- Low level contact resistance: 5mΩ max.;Side band: 10mΩ max.
| FEATURES |
BENEFITS |
- High current alloy material used for contacts
|
- Rated up to 9.5A per contact with all 12 power contacts and 4 signal contacts loaded
|
|
|
- Prevents terminals from potential damage during operation
|
- Positive locking on housing with low thumb latch operation
|
- Ensures secured mating retention
|
|
|
- Prevents accidental mismating
|
- High retention force in housing
|
- Well secured terminals in housing
|
- UL94V-0 flammability rated Nylon material
|
|
- RoHS compliant and lead-free
|
- Meets environmental, health, and safety requirements
|
