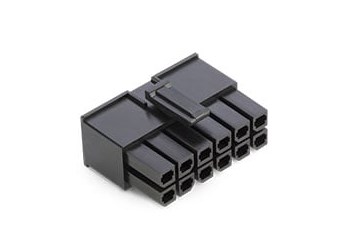

Minitek® Pwr 5.7 Connector System
5.70MM COMPREHENSIVE SOLUTION WITH CURRENT RATING UP TO 28A
Minitek® Pwr 5.70mm is a flexible and comprehensive solution for power application with high current rating up to 28A per contact and wire gauge range from 16AWG-12AWG for wire-to-board application. Minitek® Pwr 5.70mm features polarized mating geometry, this helps to prevent mis-mating. It offers a wide operating temperature, ranging -40°C to 120°C, making it suitable for a wide range of applications. The scoop proof housing prevents terminals from damage. It is available in 2 to 12 circuits for dual row.
- High current rating up to 28A per contact
- Solution for Vertical & Right Angle Through Hole
- Solution for wire-to-board
| FEATURES |
BENEFITS |
- High current alloy material used for contact
|
- Rated up to 28A per contact
|
- Positive locking on housing with low thumb latch operation
|
- Ensures secured mating retention
|
- High retention force in housing
|
- Well secured terminal in housing
|
|
|
- Prevents environmental corrosion such as salt spray and gas corrosion
|
|
|
- Complies with International Standard IEC 60335-1 for household appliances
|
- UL94V-0 flammability rated LCP material
|
|
- Halogen-free resin material
|
- Meets environmental standards
|
- RoHS compliant, UL rated, and lead-free
|
- Meets environmental, health, and safety requirements
|
