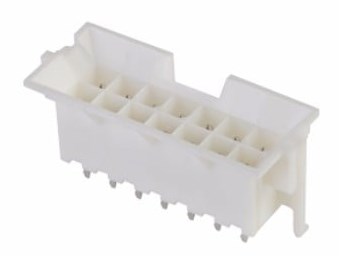

Minitek® Pwr 4.2 BMI Connector System

ROBUST AND VERSATILE SELFALIGNING CONNECTOR

Minitek® Pwr 4.2 BMI is a flexible and comprehensive solution designed for power application with current rating up to 9A per circuit. It is available in 24 circuits for dual row.

  • Scoop proof housing prevents terminals from damage
  • Polarized mating geometry to prevent mismatching
  • Fully isolated terminal stop prevent terminals from damage
  • BMI option in vertical, through-hole type for dual row. 24 positions available



FEATURES BENEFITS
  • Blind mate interface
  • Allows ± 2.54mm gatherability for blind mating
  • Fully isolated terminals
  • Prevents terminals from potential damage during operation
  • Fully polarized housings
  • Prevents accidental mismating
  • Scoop-proof housings
  • Ensures terminals and header pins are not damaged for angled mating
  • Glow wire compliant option
  • Complies with International Standard IEC 60335-1 for household appliances
  • UL94V-0 flammability rated nylon material
  • High flammability rating
  • RoHS compliant and lead-free
  • Meets environmental, health, and safety requirements
