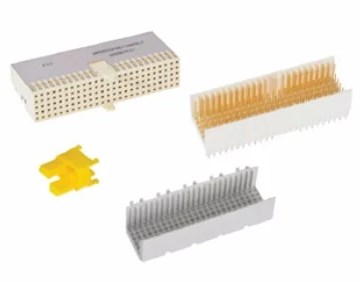

Millipacs® Compact PCI

DESIGNED IN ACCORDANCE WITH IEC 61076-4-101

Millipacs® 2mm Hard Metric connectors fulfills the interconnection requirement of the PICMG 2.0 Revision 3.0, the Compact PCI core specification.

Millipacs® for Compact PCI is featured with the 2-beam twisted tulip contact, which provides an equalized signal path, two-contact points for reliability and superior performance in an environment subject to shock and vibration. Millipacs® range currently supports 3Gb/s data rate with backward mating compatibility to the standard 2mm HM IEC 61076-4-101 connectors.

• Saves space with a 2.00mm pitch
• Current rating up to 1.5A
• Complies with Compact PCI Bus Architecture
• Hot swapping and EMI Protection
