J30J Serisi

1.27mm pitch, Metal shell, Rated current: 3A, 9-144 contacts, Temperature:-55°C to +125°C ,MIL-DTL-83513

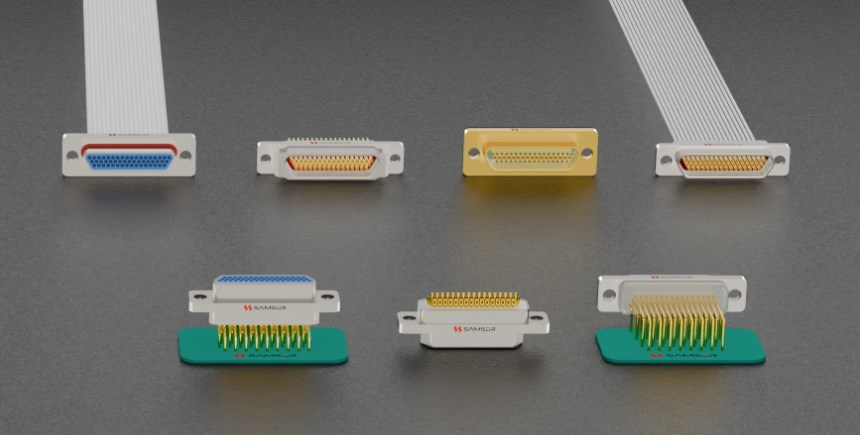

J30J Connector is a micro-rectangular electrical connector that meets military-grade standards. It features a 1.27mm pitch, with 9 to 144 contacts available, and a 3A rated current per pin. Operating temperature ranges from -55°C to 125°C, with a metal shell. It is designed for stable operation in harsh environments.

Samsor Electronics offers the full product range, manufactured in accordance with military specifications, ensuring interchangeability and compatibility with other brands on the market.

Termination Styles: Solder Cup, Pre-wired, PCB Mount. Panel mounting is supported from both front and rear.

Product Variations: Standard Type, Quick-lock Type, Rainproof Type, Hermetic Type (Glass-to-Metal Seal), Watertight Type (Epoxy Seal), Reverse Gender Type (Plug with Sockets, Receptacle with Pins), High-Temperature Resistant Type (205°C).
