Ürün Açıklaması

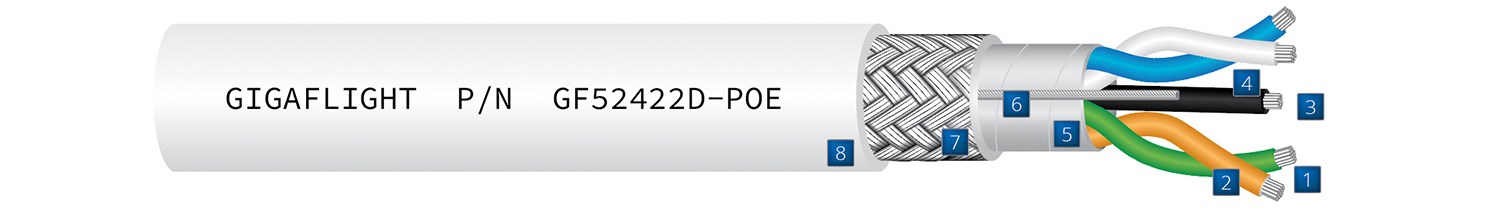

GIGAFLIGHT’s GF52422D-POE 100Ω cable transmits both data and power along a shielded, 24 AWG twisted-pair Ethernet cable combined with one 22 AWG power conductor. Designed as a high-reliability PoE optimized for demanding applications and constructed of sturdy, laser-markable Tefzel—similar to the GF62422D-POE with one less power wire. GIGAFLIGHT’s GF52422D-POE meets and exceeds CAT5e channel requirements.
Environmental & Mechanical Properties
Outer Diameter in (mm):0.21 (5.33)
Weight lbs/1000ft (kg/1000m):38 (56.55)
Operating Temperature:-55°C to +150°C
Minimum Bend Radius in (mm):1.0 (25.4)
Electrical Properties
Impedence Ω:100
Capacitance pF/ft (m):13 (42.65)
VOP:80%
DC Resistance Data Pair Ω/1000ft (m):26.2 (85.95)
DC Resistance Power Pair Ω/1000ft (m):16.2 (53.15)
Dielectric Voltage Rating Data Pair kV RMS:0.9
Dielectric Voltage Rating Power Pair kV RMS:0.6
Attenuation (+25°C)
Frequency MHzdB/100 ft (m)
102.3 (7.5)
1006.8 (22.3)
Compare GIGAFLIGHT Cables
GIGAFLIGHT P/NPIC P/NCarlisle P/N
GF52422D-POE----
