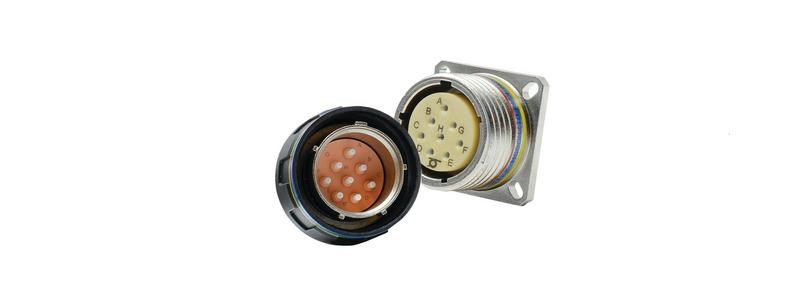

Fiber Optic JSFC15 through JSFC18 Connector and Termini

ITT Cannon expands its wide range of highly engineered fiber optic termini with the qualification of KJ Connectors to JSFC15 and JSFC16 in addition to JSFC17 optical sockets and JSFC18 optical pin termini for aerospace applications such as the F-35 Joint Strike Fighter (JSF) platform.

Cannon JFSC connectors meet D38999 test standards and range from size 11-2 to 25-37 with size 16 termini, and provide a high-performance design, up to 500 mating cycles, and can be terminated to variety of single-mode (SM) and multi-mode (MM) optical cables.

Features

• Qualified and approved source of supply to LMCO JSFC15, JSFC16, JSFC17 and JSFC18 specification
• High Performance Design
• Ease of termination for both multi-mode (MM) and single-mode (SM) optical cables
• M29504 /4 & /5 type
• Size #16 Stainless Steel Construction
• Precision Ceramic Ferrule that accommodate a variety of MM and SM fiber sizes.
• Up to 500 mating cycles
• Removable socket hood and alignment sleeve
• KJ Connector housing including size 11, 13, 15, 19, 21, 23, 25;

ITT Cannon Fiber Optic D38999 KJAF Qualified to JSFC 15 to 18.pdf
