| Nomal Parameter and Range |
| Parameter |
Typical Range |
| Circuits |
C/π/T/L |
| Capacitance |
0pF～3μF |
| Tolerance |
±20%、-20%～+50%、-20%～+80%、0～+100% |
| Voltage – Rated |
50VDC、63VDC、100VDC、200VDC |
| Current |
2A、5A、10A、20A |
| Operating Temperature |
-40℃～+85℃、-55℃～+85℃、-55℃～+100℃、-55℃～+125℃ |
| Chip style |
Multi-Layer Plate / Single Layer Plate/Porcelain tube |
| Mounting Methods |
Surface-mount |
|
| Welded |
M2.5-M10 |
| Solder-in |
Ø2–Ø10 |

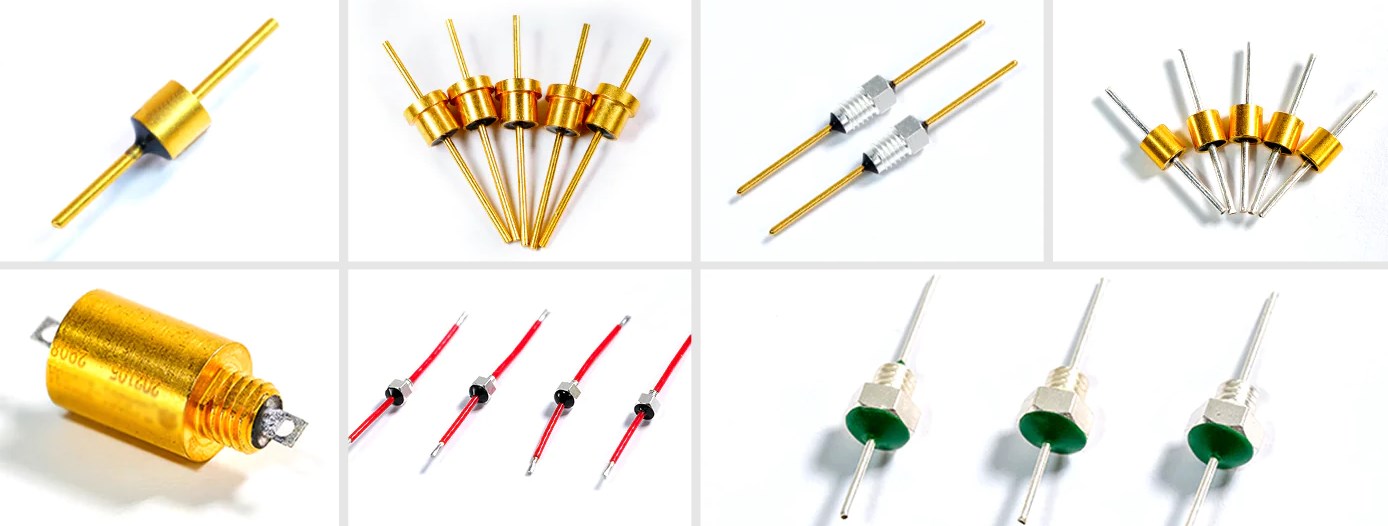

| The feedthrough filter can be customized, including parameter normal range and parameter exceeding normal range. |
