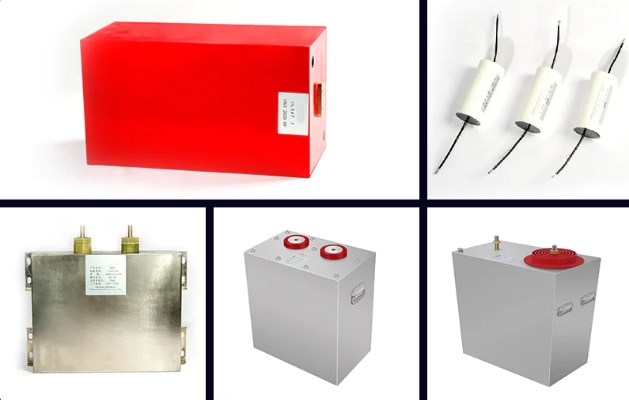

Energy Storage Pulse Capacitor

Parameter	Typical range
Capacitance (C)	0.1mF~100mF
Rated Voltage (V)	400V~200kV
Withstand Voltage	1.05~1.2Un
Energy Storage (E)	500J~500kJ
Energy Density	≤3.0J/cc
Loss Tangent (100Hz)	0.0002~0.01
ESL	10nH~200nH
ESR	1 mΩ~100 mΩ
Peak Current (I_peak)	100A~200kA
Reverse Peak Factor	10%~80%
Pulse Duration (t_pulse)	10ns~10ms
Pulse Discharge Repetition Frequency	0.1Hz~1kHz
Charge Time	1µs~10min
Service Lifetime	1000Times~100000000Times
Operating Temperature Range	-40°C ~ +85°C
