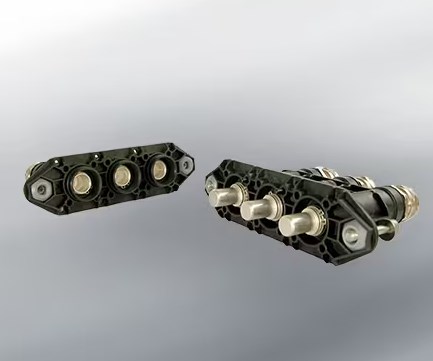

EKO - Composite Connectors for Power Applications

Field Proven Solution from Metros to very high speed trains, EKO Composite Series is designed in accordance with EN 50467 (2012) & NFF 61030 standards.  It will answer to all of your static applications for inline or panel connections. The EKO solution ranges from 1 to 4 poles and up to 240mm2 cables size for 3000 volt applications. The EKO family is completed by EKO S (shielded & high resistance for mechanical constraints), EKO D (derivation) and EKO A (inter-vehicle). See the respective pages for more details

Benefits

• High level of performance
• Straight and 90o connection
• Compact and weight-saving
• Halogen free
• Field-proven

Description

• Connection suitable for unshielded cables
• Locking system with captive screws
• Configurations: 1, 3 or 4 poles
• Crimp contacts: cable cross-section from 10 to 240 mm2
• Copper and aluminum cables

Main Characteristic

• Rated current: up to 800 A
• Service voltage: up to 3000 V DC/AC
• Withstand voltage: 9500 V
• Protection index: IP67
• Salt Spray resistance: 500 hours
• Temperature range: -40oC / +100oC
• Vibrations and shocks: EN 61373 category 1B
