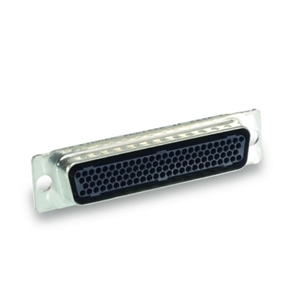

Double Density D-Subminiature (High Density) 2D Series

With an increased pin count from standard 50 to 100 contacts, the ITT Cannon 2D, Double Density D-Sub Series features twice the number of contacts in the same standard insert area. This is achieved by using field-proven, highly reliable Centipin™ /  Centisocket™ contacts on .075 (1.91) centers in a positive contact alignment design. Also known as High Density D-Sub, this innovative connector solution is ideally suited for a wide range of  applications in Industrial end markets.

Features

• Ultra High Density
• Twist Pin Contacts
• Highly Durable
• Guide-In Keys and Keyways
• Board Mount Capabilities
