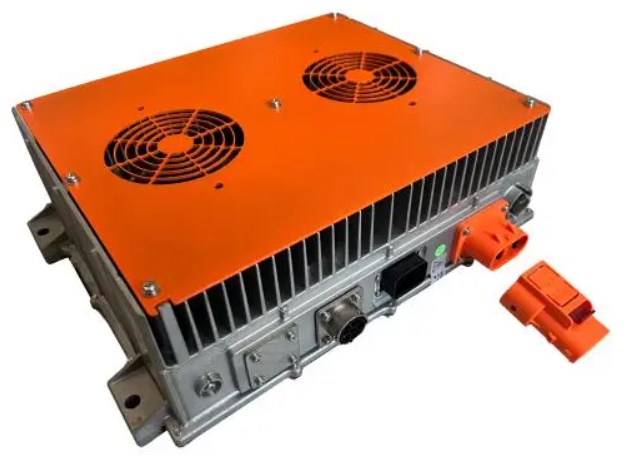

DCNE-OBC Q4-6KW/12KW DC48-720V 12-180A
Benefits
Benefits
⭐ Board input voltage 110 or 220 or 380V, with CAN BUS communication
⭐ IP66 standard
⭐ Multiple smart functions to beyond your expectation
⭐ Could be applied for forklift, pallet truck, crane, excavator battery, or somewhere need high power source.
⭐ One charger to one battery charge, protecting your battery lifespan effectively
| Name |
OBC Q4-6KW/12KW DC48-720V 12-180A high power；fast charging, |
| Model |
OBC-DACHENG-Q4-6KW/12KW |
| Cooling Way |
Air cooling |
| Size |
352*194*113mm、352*194*236mm |
| N.W |
10KG、20KG |
| Color |
Orange |
| Battery Type |
Lifepo4,18650, Lithium ion battery
lead-acid battery, AGM, GEL
Nickel-metal hydride, nickel-cadmium, nickel-chromium batteries, etc |
| Efficiency |
≥93% |
| IP |
IP66 （Waterproof, dustproof, explosion-proof, shockproof） |
| Input Voltage |
AC110-380V、50-60Hz |
| Input Current |
30A、60A |
| Output Voltage |
48V、60V、80V、108V、144V、360V、540VDC、720VDC |
| Output Current |
360A-12A |
| Protection function |
1.Superheat protection, short circuit protection, reverse connection protection. |
| 2.Overpressure protection Overcharge protection. |
| 3. LED lights |
| Charge mode |
Constant current charge, constant pressure charge, uniform charge, floating charge. |
| Input Connectors |
Matching plug available |
| Charging time |
Calculate charging time based on battery capacity |
| Operating temperature |
(-40 ~ +55)℃; |
| Storage temperature |
(-40 ~ +100)℃; |
| Material |
Aluminum drawing piece |
| Output type |
Constant pressure/current |
| Output power |
6KW、12KW |
| CAN communication function |
Yes |
| CC/CP |
Yes |
| Please check the charger operation and installation manual |
