⭐ For the light vehicles such as the golf cart, forklift and sightseeing car etc.
⭐ Small size and light weight
⭐ High efficiency and high protection level of IP67
⭐ Long working life and easily for using
⭐ Used for all kind of batteries
⭐ provide some other higher power items and with CAN BUS type

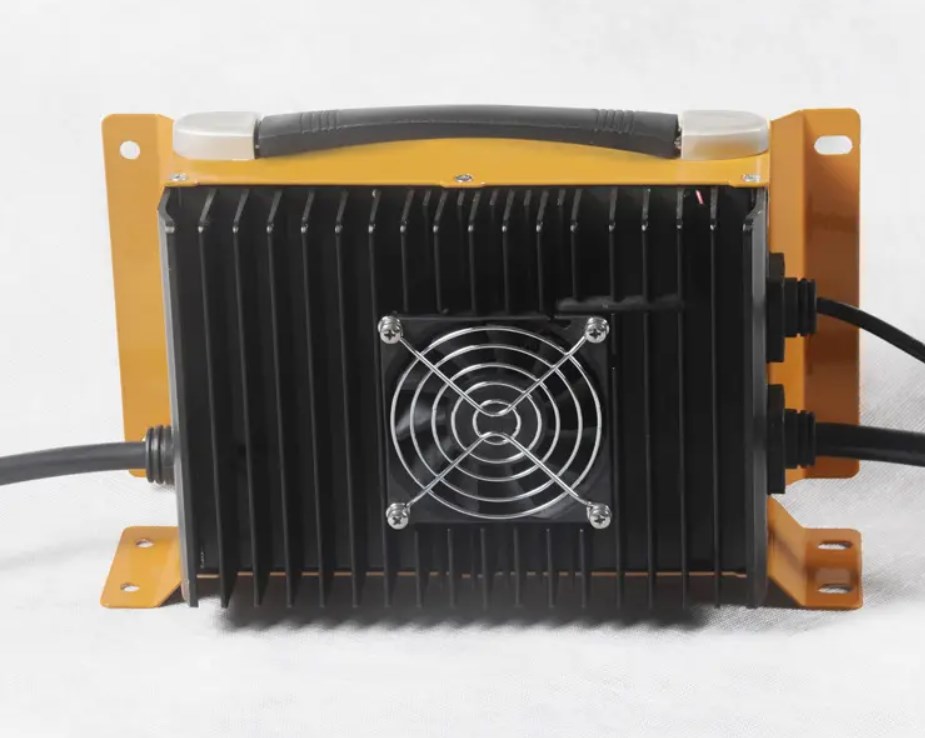

Name	OBC Q1-2KW DC12-108V 5-30A charge your battery quickly and safely
Model	DCNE-Q1-2kw
Cooling Way	Air cooling
Size	280*155*115mm
N.W	4.5KG
Color	Black or Silver or Yellow
Battery Type	Lifepo4,18650, Lithium ion battery
	lead-acid battery, AGM, GEL
	Nickel-metal hydride, nickel-cadmium, nickel-chromium batteries, etc
Efficiency	>95%
IP	IP66 （Waterproof, dustproof, explosion-proof, shockproof）
Input Voltage	AC220V±15%、50-60Hz
Input Current	13A
Output Voltage	12V、24V、36V、48V、60V、72V、80V、84V、96V、108V、120VDC
Output Current	35A、30A、25A、20A、17A
Protection function:	1.Superheat protection, short circuit protection, reverse connection protection.
	2.Overpressure protection Overcharge protection.
	3. LED lights
Charge mode:	constant current charge, constant pressure charge, uniform charge, floating charge.
Input Connectors	EU/US/UK/AU plug;EU/US charging gun and socket (optional)
Charging time	Calculate charging time based on battery capacity
Operating temperature	(-35 ~ +85)℃;
Storage temperature	(-55 ~ +100)℃;
Material	Aluminum drawing piece
Output type	Constant pressure/current
Output power	2000W
Input cable length	1.2M
Output cable length	1M
Please check the charger operation and installation manual
