Ürün Açıklaması
DCNE- OBC Q1-12KW DC12-120V 80-150A
Benefits
⭐ For some heavy vehicles such as the truck, excavator, crane etc.
⭐ Big power charger to charge the battery quickly and safely
⭐ High efficiency and high protection level of IP67
⭐ Long working life and easily for using
⭐ Used for all kind of batteries
⭐ provide some other higher power items and with CAN BUS type
|
Name
|

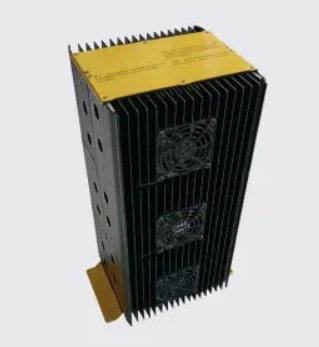

OBC Q1-12KW DC12-120V 80-150A High power charger with light weight
|
|
Model
|
DCNE-Q1-12kw
|
|
Cooling Way
|
Air cooling
|
|
Size
|
460*280*320mm
|
|
N.W
|
23KG
|
|
Color
|
Yellow
|
|
Battery Type
|
Lifepo4,18650, Lithium ion battery
lead-acid battery, AGM, GEL
Nickel-metal hydride, nickel-cadmium, nickel-chromium batteries, etc
|
|
Efficiency
|
>95%
|
|
IP
|
IP66 （Waterproof, dustproof, explosion-proof, shockproof）
|
|
Input Voltage
|
AC220V±15%、50-60Hz
|
|
Input Current
|
80A
|
|
Output Voltage
|
12V、24V、36V、48V、60V、72V、80V、84V、96V、108V、120VDC
|
|
Output Current
|
150A、130A、110A、100A、80A
|
|
Protection function:
|
1.Superheat protection, short circuit protection, reverse connection protection.
|
|
2.Overpressure protection Overcharge protection.
|
|
3. LED lights
|
|
Charge mode:
|
constant current charge, constant pressure charge, uniform charge, floating charge.
|
|
Input Connectors
|
EU/US/UK/AU plug;EU/US charging gun and socket (optional)
|
|
Charging time
|
Calculate charging time based on battery capacity
|
|
Operating temperature
|
(-35 ~ +85)℃;
|
|
Storage temperature
|
(-55 ~ +100)℃;
|
|
Material
|
Aluminum drawing piece
|
|
Output type
|
Constant pressure/current
|
|
Output power
|
12000W
|
|
Input cable length
|
1.2M
|
|
Output cable length
|
1M
|
|
Please check the charger operation and installation manual
|
