Cu Light Series- Copper-to-Fiber Conversion

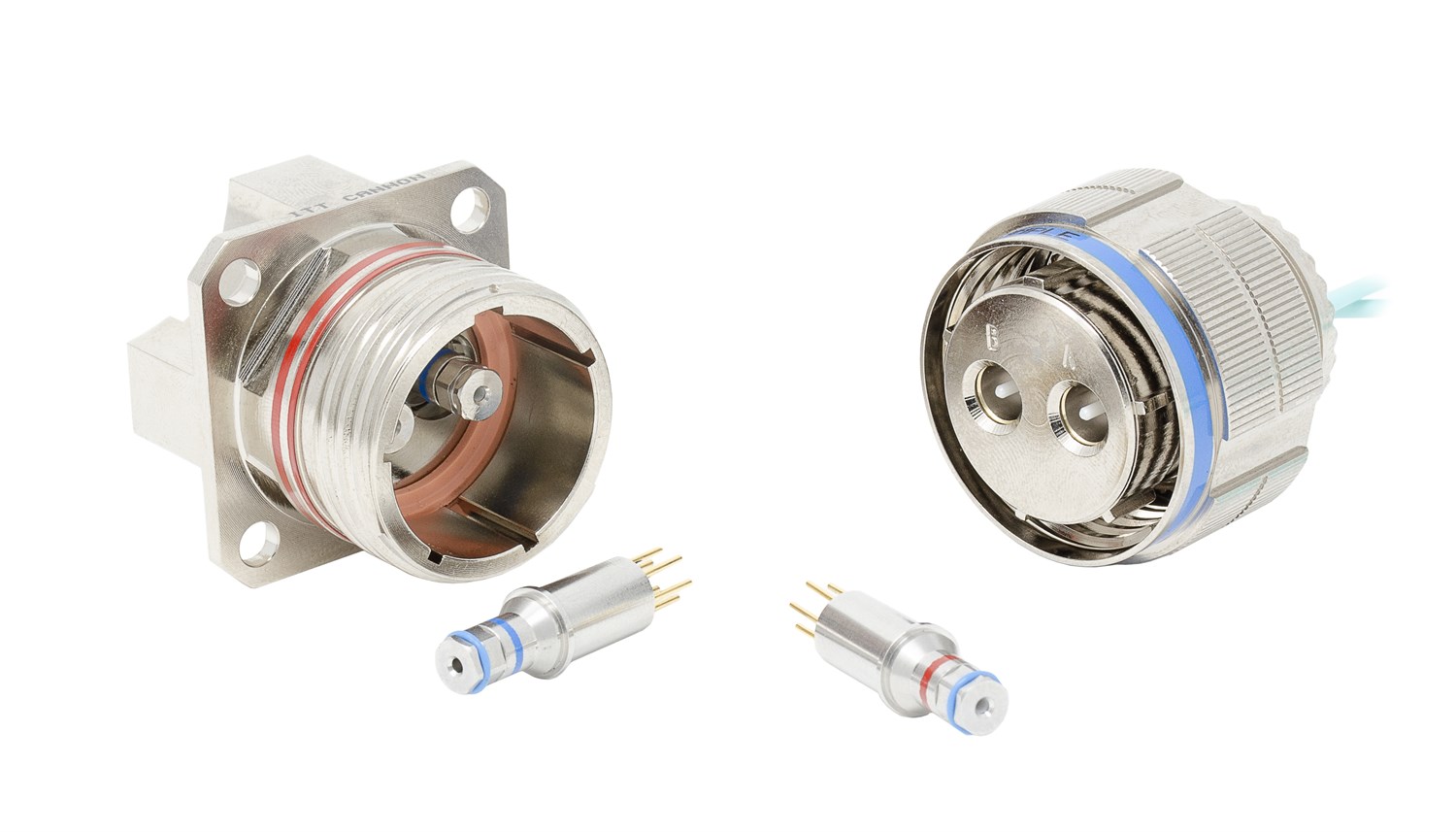

Designed per MIL-PRF-38534 requirements, Cu Light offers a robust, TOSA-ROSA Copper-to-Fiber conversion in a Size #8 contact system that can be deployed in any Cannon harsh environment connector. With operating speeds +10 Gbps, this revolutionary solution allows the copper-to-fiber conversion within the connector contact system instead of requiring a secondary media converter box. This provides an ideal solution when EMI resistant optical fibers are needed for longer transmission distances. The solution also provides the designer and end-user with field-replaceable pluggable (FR-FR) contact retention system to ensure field-readiness for your mission-critical design.

Features

• Ruggedized Copper to Fiber Transmitters and Receivers
• Interfaces to KJCTF Plug with ARINC 801 (1.25mm Ceramic Ferrule) Termini
• Terminates to PCB or Flex Circuit with HS Interface Board Connector
• Sealed Design Eliminates Moisture Ingress
• Ruggedized for Shock and Vibration Environments
• Replacement for High-Speed Copper Quadrax Contacts
• Field Replaceable (FR-FR) Contact Retention System allows for maximum “Mission Readiness”

CuLight Copper to Fiber TOSA-ROSA Sell Sheet.pdf
