Ürün Açıklaması

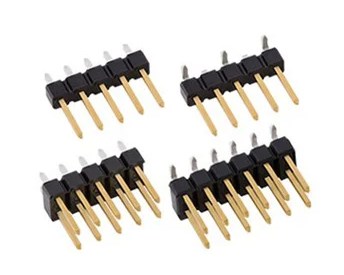

BergStik® 2.54mm
GENERAL PURPOSE VERSATILE STACKERS WITH BREAKAWAY DESIGN
BergStik® FCI Basics 2.54mm unshrouded headers are available in surface-mount (SMT), through-hole (THT), press-fit, stacking and pin-in-paste (PIP) versions. Designed in single and double row, they are available in straight or right angle options, from 2 to 72 positions.
Featuring a "breakaway" design, each connector can be cut or broken into lengths to suit the application profile with a maximum current rating of 3A per contact.
It offers an economical solution for various applications with durability up to 100 mating cycles.
- Same PCB layout for Through-Hole and PF versions
- Shrouded and Unshrouded headers
- Multiple termination options: SMT, THT, PF, PIP
| FEATURES |
BENEFITS |
- High-temperature thermoplastic material
|
|
- Variable spacing height for stacking headers
|
- Cater to a wide range of applications
|
- Allow dual entry, mating from top or bottom
|
- Suitable for mezzanine application and gives more flexibility in meeting different stack height requirements
|
- Blank 0.64mm square contacts present 4 surfaces of equal quality
|
- Can be used for wire wrapping
|
|
|
- Allows cleaning to remove soldering contamination
|
|
|
|
- Tin-lead plating in press-fit area
|
- Easy pin insertion onto PCB
|
|
|
- High retention force onto PCB
|
- Press-fit designed to fit 1.02mm diameter hole, solder-to-board products
|
- Same layout on THT and press-fit
|
- Meets DIN 41651 specification, HE13, and BT D2632
|
|
