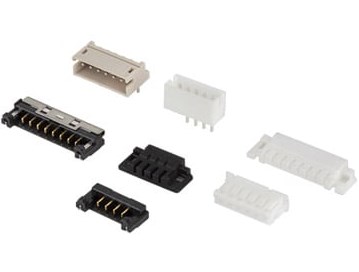

AgilLink™ 1.50mm Wire-to-Board Header
CUSTOMIZABLE SHROUDED WIRE-TO-BOARD HEADER
AgilLink™ 1.50mm Wire-to-Board G886 series is the most common solution for transferring power and signal. This series can carry a maximum current rating of 2.5A. Amphenol offers a comprehensive range of these headers including, vertical and right angle DIP, and vertical and right angle SMT, to meet various customer requirements. It comes with customizable pin length, latch or location post, which makes it an ideal choice for several applications and specific designs.
- Saves space with 1.50mm pitch
- Accommodates wire range from 32 AWG to 24AWG
- Options for latch and post
- Supports PiP process
- Easy pin insertion and high retention force onto PCB
| FEATURES |
BENEFITS |
|
|
- Suitable for different applications and specific designs
|
- Various mounting options including vertical DIP, right angle DIP, vertical SMT and right angle SMT
|
- Ease in choosing board mating configurations
|
- High temperature thermoplastic material
|
|
- Tape and reel packaging option
|
|
- RoHS compliant and halogen free
|
- Meets environmental, health and safety requirements
|
|
|
|
- Mates with G886,G886H/C WTB
|
- Mutually compatible for wire to board
|
