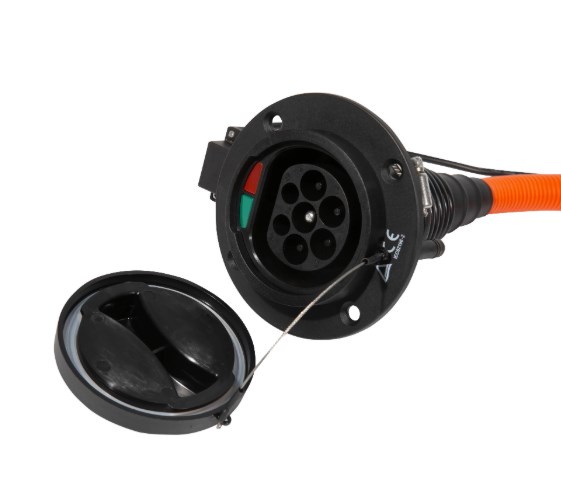

AC Vehicle Inlet of EU Standard, 250V-440V, 10A-63A
Benefits
⭐ Meet the regulation & standard of IEC62196-2014;
⭐ Multi-channel sealing structure design, product protection level can reach IP67;
⭐ The product has the functions of leakage protection, overvoltage and under voltage protection and overload protection;
⭐Temperature control & Electric Lock is available;
⭐ Could be easily connected with your EV/EV’s Charger;
|
Product Model
|
Rated Voltage
|
Rated Current
|
Application
|
|
DCNEO-A-F110
|
250V
|
10A
|
BEV
Electic Bus
Intergrated Charging station |
|
DCNEO-A-F120
|
16A
|
|
DCNEO-A-F130
|
32A
|
|
DCNEO-A-F220
|
440V
|
16A
|
|
DCNEO-A-F230
|
32A
|
|
DCNEO-A-F240
|
63A
|
| Electronical |
Electronic Looking Function |
250V(1 Phase)
440V(3 Phase) |
| Rated Current |
10A/16A/32A/63A |
| Insulation Resistance |
≥500MΩ |
| Withstand Voltage |
2500V |
| Temperature Rise |
≤50K |
| Electronic Looking Function |
YES |
| Temperature Inspect Function |
YES |
| Plugging Force |
≤100N |
| Looking Pull-Out Force |
≥200N |
| Cable Tension |
100N-240N |
| Mechanical Life |
≥20000 Times |
| Emergency Looking Function |
NO |
| Vehicle Rolling |
5000N |
| Environmental |
Ambient Temperature |
-40℃ ~ +75℃ |
| Pollution Level |
2nd Level |
| Protection Level |
IP67 |
| Rubber Age Resistance |
240h |
| Plastic Age Resistance |
168h |
| CTI Level |
0 Level |
