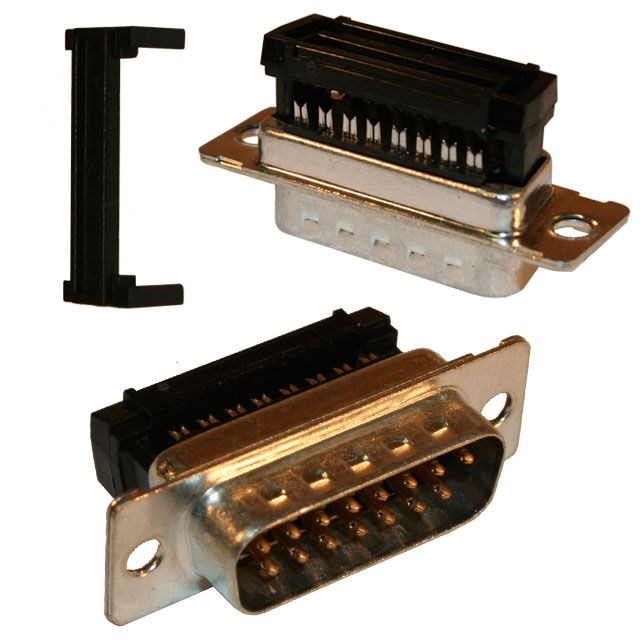

184A Series

Features

• Low-profile IDC d-subs available in 4 industry sizes/positions
  • Standard Density (9 pin, 15 pin, 25 pin, 37 pin).
• Low termination height from mounting flange to the back of connector.
• Visual inspection of termination possible.
• Fluted cover provides correct alignment of cable.
• Contacts accept 28 awg solid or stranded .050" center flat ribbon cable.
• Pre-assembled body and cover. Strain Relief provided with connector.
• 1 mating hardware option available (See Data Sheets).

Materials

• Shell: Steel, Tin Plating
• Insulator: UL 94V-0 Rated, Polyester, GlassFilled, Black
• Contacts: Male & Female = Copper Alloy
• Plating: Gold Flash all over
