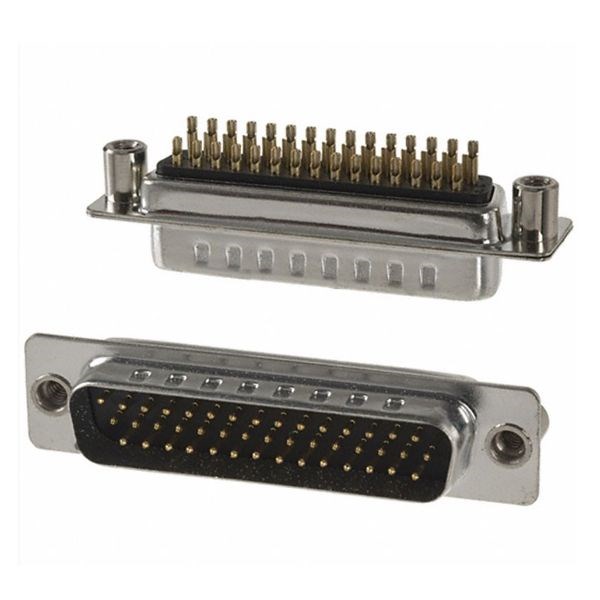

180 Series Solder Cup

Features

• Solder cup d-subs available in 5 industry sizes/positions
  • HIgh Density (15 pin, 26 pin, 44 pin, 62 pin, 78 pin).
• Approximately 65% higher density than standard D-Sub connectors.
• Low cost & high performance stamped contacts.
• Metal shell provides EMI/RFI shielding.
• Plug shells have indents to provide grounding and additional retention.
• Connectors will fit in standard d-sub backshells.

Materials

• Shell: Nickel or Tin Plated Steel
• Insulator: Glass-filled thermoplastic. UL94 V-0
  (230°C process temp)
• Contacts: Gold Flash Plated Brass (Entire Contact)
