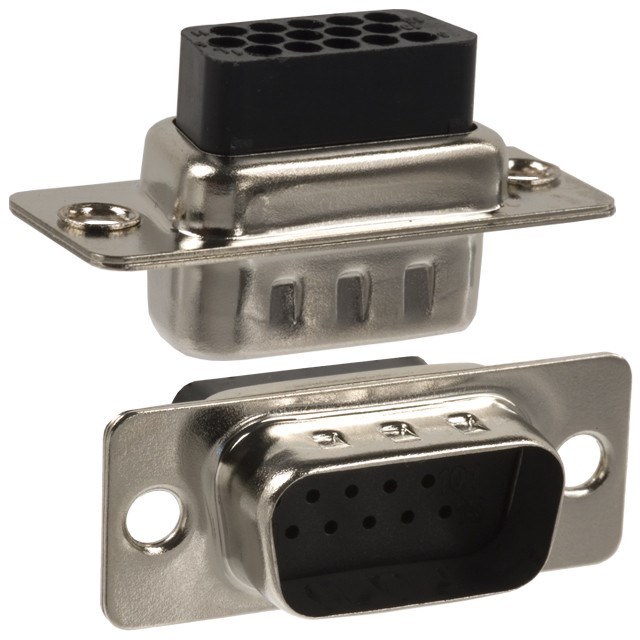

180 Series Crimp & Poke

Features

• Crimp & poke D-Sub high-density is available in: (15 pin, 26 pin, 44 pin, 62 pin, 78 pin).
• Approximately 65% higher density than a standard D-Sub connector
• Low cost / high performance stamped contacts (ordered separately).
• Steel plated shell provides optimal EMI/RFI shielding.
• Plug shells have indents to provide grounding and additional retention.

Materials

• High Density D-Sub Shell: Nickel Plated Steel
• Insulator: Glass-filled Thermoplastic, UL94 V-0
  • (230°C process temp)
