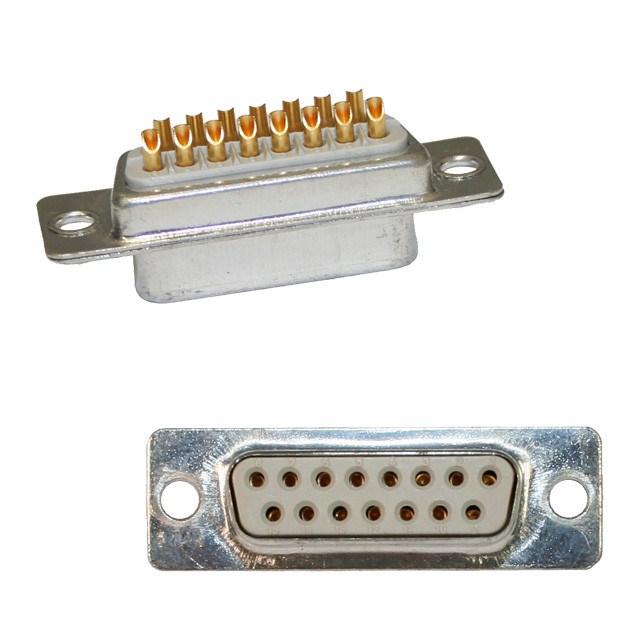

172 Series Solder Cup

Features

• Solder cup d-sub available in 5 industry sizes/positions
  • Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin)
• Nickel shells have indents to provide grounding and additional retention.
• Screw machine contacts offer high reliability. Non-removable contacts.
• Optional mounting hardware available.

Materials

• Shell: Steel, nickel plated
• Insulator: Glass-filled thermoplastic, UL94 V-0
  (260°C process temp)
• Machined contacts:
  Male pins - Brass | Female pins - Brass
• Plating: Gold flash on entire contact
• Contact us for other plating options
