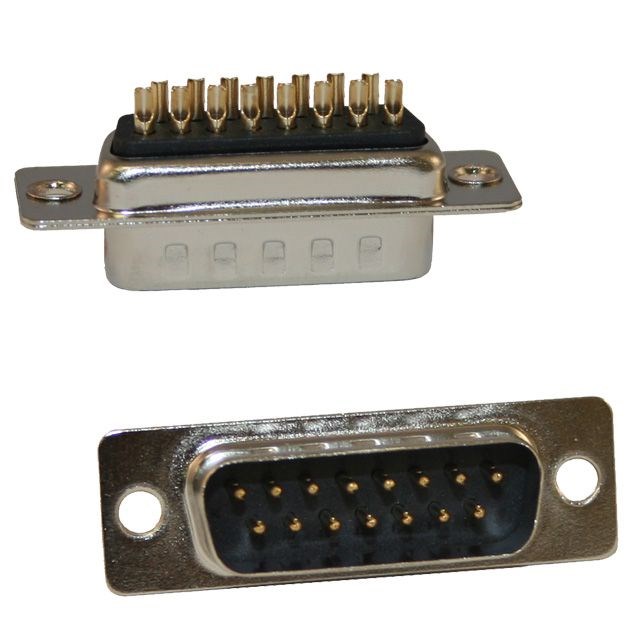

171 Series Solder Cup

Features

• Solder cup d-subs available in 5 industry sizes/positions
  • Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin)
• Low cost economy series
• Male nickel or tin plated shells have indents to provide grounding and additional retention
• Low cost & high performance, non-removable stamped contacts
• Optional mounting hardware available

Materials

• Shell: Nickel Or Tin Plated Steel
• Insulator: Glass-filled thermoplastic. UL94 V-0
  (230°C process temp)
• Stamped contacts: Male pins - Brass | Female pins - Phosphor bronze
• Plating: Gold flash on entire contact
  (contact NorComp for other plating options)

Panel_Cutout_D-Sub-Single (1).pdf
