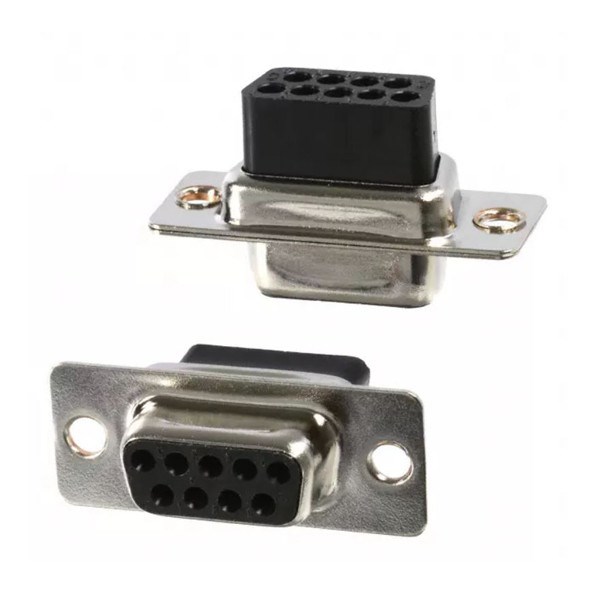

170 Series

Features:

• Crimp & poke d-subs available in 5 industry sizes/positions
• Standard Density (9 pin, 15 pin, 25 pin, 37 pin, 50 pin)
• Low cost commercial version of military standard
• Allows for easy loading of only the positions required
• Crimp & Snap-in contacts (sold separately)
• Nylon insulator has a minimum contact retention of 10 lbs
• Contact current rating: 5 amps

Materials

• Crimp D-Sub Shell: Nickel Or Tin Plated Steel
• Insulator: Glass-filled thermoplastic,
• UL94 V-0 (230°C process temp)

Panel_Cutout_D-Sub-Single.pdf
